The T1 01.01.04 line kit is designed to be installed on a stock intake manifold or AMS billet intake, to be used in conjunction with the T1 01.01.03 In Tank Fuel System. Installation will be the same for both the second generation Audi R8 or Lamborghini Huracan. As is the case with any fuel system related work, all work should be performed by a qualified mechanic on a cool engine.

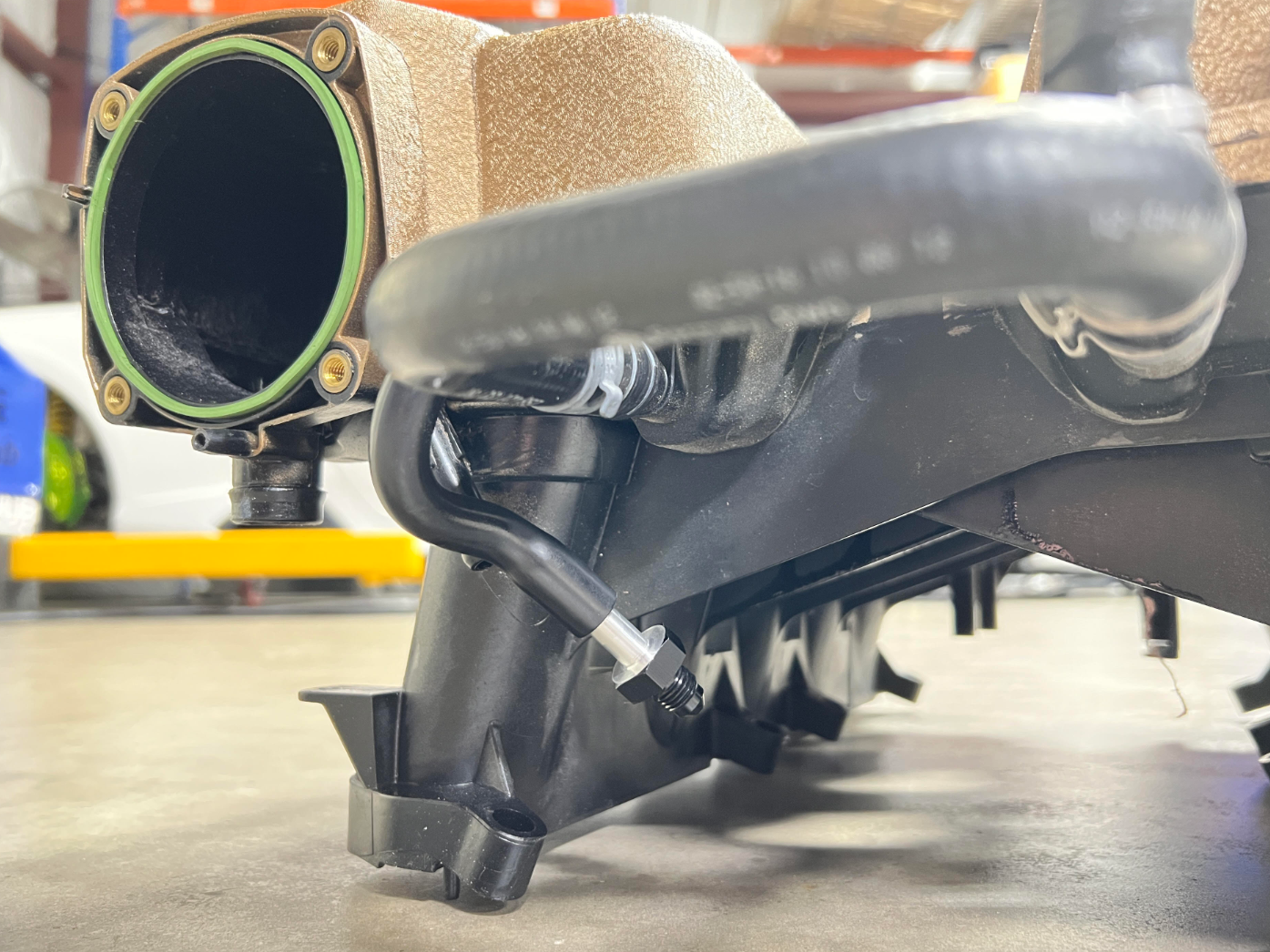

Filter inlet check valve assembly, note this is a previous design. The current design does not use the AN coupler and the check valve mounts directly to the filter:
Filter to Bank 1 Port Rail. Note, between the filter inlet line and the outlet line being secured, the filter is securely placed without the need for a bracket or tie:

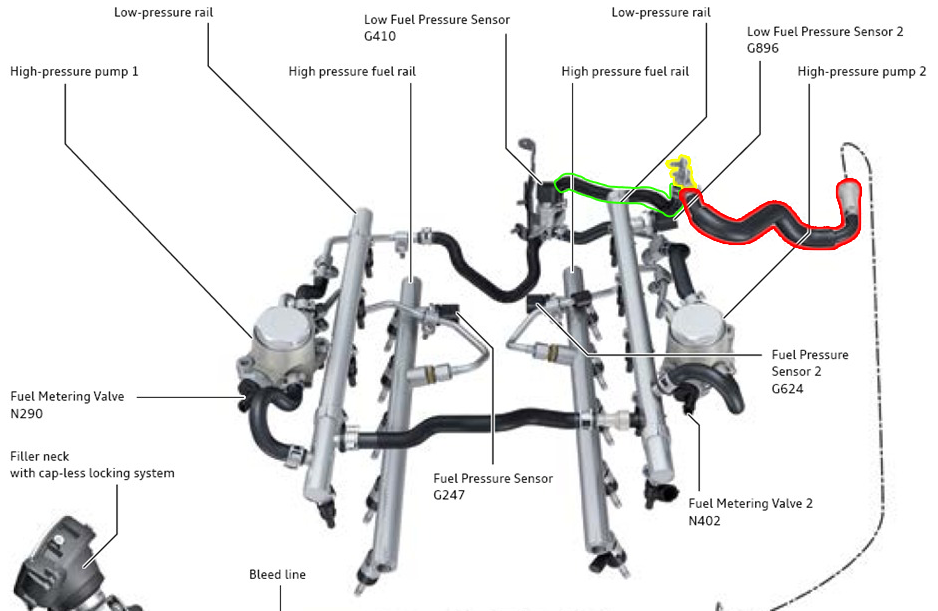

Bank 2 Port Rail to FPR:

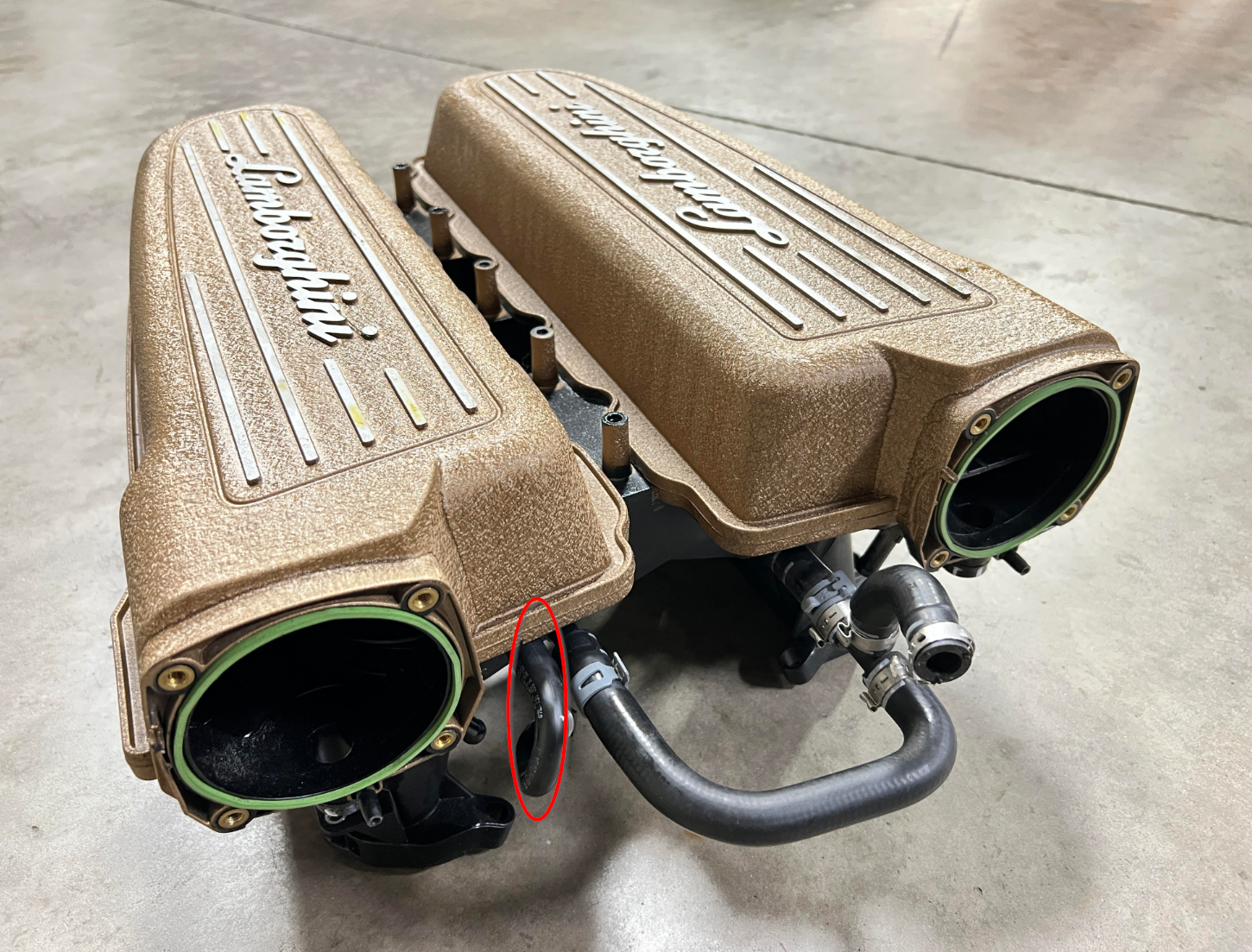

FPR to OEM Feed:
